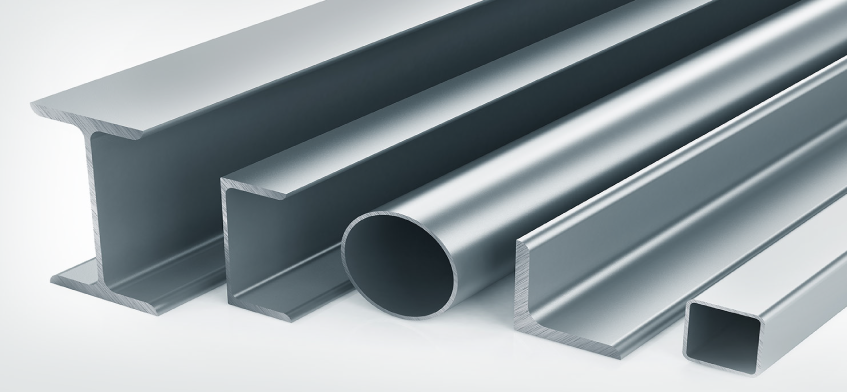

Angle, Channel & Flats

Stainless Steel profile

We manufacture and export premium quality stainless steel flats, angle, channel & stainless steel round bars, which find application in different industries. While the angle channels are hot rolled, solution annealed, pickled and straightened, the bars are available in both varieties that include cold drawn & polished and centreless ground & polished. These angle channel & steel round bars are widely used as machined components, pump shafts, valves, fasteners, machine tools etc. .

Round Bars (Cold Drawn) :

Application : Machined Components, Pump Shafts, Valves, Fasteners, Machine Tools, Dairy Equipments, Surgical & Medical Parts, Threaded Bars, Studs, Bolts, Pins, Hinges and Handles.

Grade : 201a, 201b, 201c, 202, 204Cu, 303, 303Cu, 303F, 304, 304Cu, 304L, 310, 316, 316L, 32, 410, 420, 416, 430, 431, 430F & others

Condition : Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished

Diameter : (Size) 2 mm to 12mm (1/8" to 1/2") 6mm to 40mm (1/4" to 1 1/2")

Diameter Tolerance : h9 (Din 671),h11 ASTM A 484 H7, h8, h9 (Din 671) ASTM A 484

Length : As per requirement Upto 7 mtrs with a min. length tol. of -0+/100mm As per requirement Upto 7 mtrs with a min. length tol. of -0+/100mm

We can give Chamfering of 30 or 45 degrees on one or both the ends with our dedicatedchamfering machine.

Stainless Steel Angles

We offer Stainless Steel Angles that are available in different sizes and dimensions in accordance to international market standards. We offer Stainless Steel Angles according to the requirements of the clients.

Their specifications are as follows:

Size Range:1" thru 6" vide x 1/8" thru 1/2" thk 25 x 25 x 3mm thk to 100 x 100 x 12mm thk

Type:HRAP

Length:Single Random, Cut Length

AISI:304/L, 303, 316/L, 321, 310, 316Ti, 316LN, 410, 416, 420, 430F, 431, Duplex 2205

Test CertificateMill Test Certificate as per EN 10204 / 3.1B

Stainless Steel U Channels

Sizes (mm)100 x 40 x 5 , 150 x 50 x 5 , 100 x 44 x 8 , 100 x 45 x 6 , 100 x 50 x 6 , 75 x 40 x 6 , 50 x 25 x 3 , 50 x 25 x 6 , 80 x 40 x 5

Size Range:1" thru 6" vide x 1/8" thru 1/2" thk 25 x 25 x 3mm thk to 100 x 100 x 12mm thk

Sizes (inches)4" x 1.58" x 0.180" , 6" x 1.92" x 0.200" , 4" x 1.720" x 0.320" , 4" x 1.3/4" x 0.250" , 4" x 2" x 1/4" , 3" x 1.1/2" x 1/4" , 2" x 1" x 1/8" , 2" x 1" x 1/4" , 3" x 1.1/2" x 0.180"

Test CertificateMill Test Certificate as per EN 10204 / 3.1B

Stainless Steel Flats

We manufacture stocks stainless rolled and flat bar in 304/L and 316/316L hot finished. We also stock 303 in cold finished rolled flat bars. All stainless rolled flat bars are stocked in standard 12' random length sections. Penn Stainless will also process all stainless rolled flat bar.

Our saw cutting capabilities enable our customers to receive the parts needed to start production.

We can alsopolished stainless rolled flat bars per your specifications. Other grades and non standard sizes can be supplied upon request.

Gauge:1/8" thru 1-1/2" thick x 3/8" thru 8" wide

Stainless Grades :303 - 304/304L - 316/316L - 416 - 17-4PH

Test CertificateMill Test Certificate as per EN 10204 / 3.1B
