Product Details

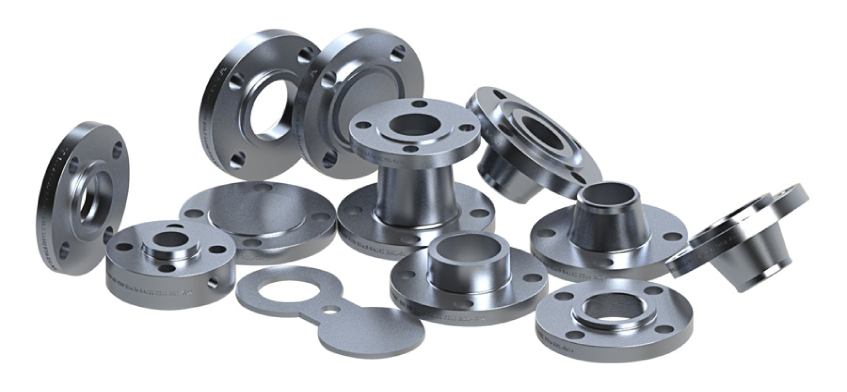

Stainless Steel Pipe Flanges

Stainless Steel Threaded Flanges

Shell Chemicals

We are one of the leading manufacturers & exporters of threaded flanges, threaded pipe flanges and stainless steel threaded flanges. These special type of flange is generally used for high pressure, yet smaller diameter applications. Their key feature is that these flanges can be assembled without welding. Threaded Flanges can be used in extremely high pressure services, thus proving impeccable working capacities. Our threaded flanges, threaded pipe flanges and stainless steel threaded flanges can be customized as per the client's requirement.

Stainless Steel : ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel :

ASTM A 105, ASTM A 181

Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys : Copper, Brass & Gunmetal

Size : 1/8" NB TO 48"NB.

Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #

Stainless Steel Weldneck Flanges

Shell Chemicals

Weld Neck Flanges are drilled (machined) with the wall thickness of the flange having the same dimensions of the matching pipe. The lighter the pipe is, the larger the bore, conversely, the heavier the pipe, the small the bore. Our range weld neck flanges, welding neck flanges are normally used for high-pressure, cold or hot temperature. We specialize these flanges in different dimensional and material specifications based upon the requirements of the clients.

Stainless Steel : ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel :

ASTM A 105, ASTM A 181

Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys : Copper, Brass & Gunmetal

Size : 1/8" NB TO 48"NB.

Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #

Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10

Stainless Steel Din Flanges

Shell Chemicals

Our quality inspected Flanges comply with DIN (Deutsches Institute for Normung) standards. These din flanges, din pipe flanges, stainless steel din flanges are made up of qualitative metals that provide extra-strength to the flanges. Available in accurate standard sizes, our range of DIN Flanges can be customized as per the requirements of the clients.

Stainless Steel : ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel :

ASTM A 105, ASTM A 181

Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys : Copper, Brass & Gunmetal

Size : 1/8" NB TO 48"NB.

Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10

Stainless Steel Slip on Flanges

Shell Chemicals

A Slip-On Flange is bored slightly larger than the Outer Diameter of the corresponding pipe. The pipe slip into the flange prior to welding both inside and outside for leak proof connection. Higher durability, non corrosive nature and the sustenance to pressures make our range of slip on flanges, slip on pipe flanges, and slip on forged flanges ideal to be used across the various industries. We can offer slip on flanges in different configuration based on the requirements of the clients.

Stainless Steel : ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel :

ASTM A 105, ASTM A 181

Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys : Copper, Brass & Gunmetal

Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10

Stainless Steel Socket Weld Flanges

Shell Chemicals

Socket Welding flanges have counter bore is sightly larger than the Outer Diameter of the matching pipe, allowing the pipe to be inserted. A restriction is built into the bottom of the bore, which acts as a shoulder for the pipe to rest on, and has the same ID of matching pipe. The innovative design of flanges ensure that flow is not restricted in any direction. We can offer socket welding flanges, steel welding flanges, stainless steel welding flanges in variety of specifications for application in different industries.

Stainless Steel : ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel :

ASTM A 105, ASTM A 181

Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys : Copper, Brass & Gunmetal

Size : 1/8" NB TO 48"NB.

Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10

Stainless Steel Blind Flanges

Shell Chemicals

A Blind Flange has no bore, and is primarily used to close ends of piping systems. The unique design of the flange permits easy access to a line ones it has been sealed. Our range of blind flanges, steel blind flanges, stainless steel blind flanges can be machined to accept a pipe of the nominal Size to which reduction is being made. The reduction can be either threaded or welded based upon the requirements of the client.

Stainless Steel : ASTM A 182, A 240

Grade : F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel :

ASTM A 105, ASTM A 181

Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys : Copper, Brass & Gunmetal

Size : 1/8" NB TO 48"NB.

Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10
